Designed for use in:
Server Rooms, Laboratories, Electronic Assembly Areas, Entire
Buildings

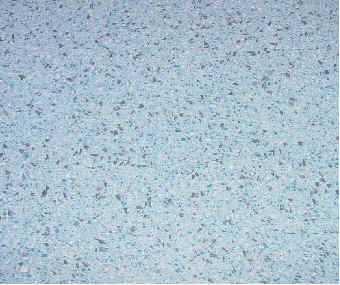

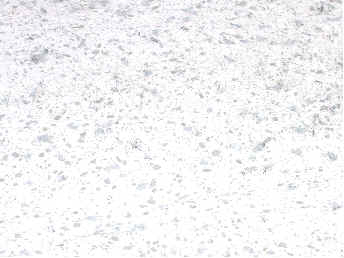

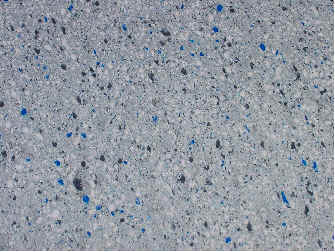

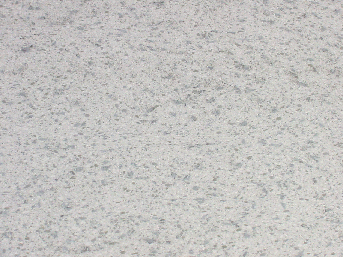

Our Conductive Floor is available in 4 colors.
Installation can be accomplished with ESD Adhesive or Electronic Adhesive Tape.
<106
ohms ESDeuroflex / Solid Vinyl Sheets or Tile
Description:
ESDeuroflex is a semi glossy permanently ESD conductive solid vinyl
industrial flooring product. Roll
goods may be used as mats or may be permanently glued.
Tiles must be glued down with epoxy or double sided conductive
tape.
Short Form Specification:
The material shall be manufactured as a co-extruded 4’6” x 66’ x
2.0mm (2.0mm = .080” gauge) sheet or as 24” x 24” x 1.0mm (.080”
gauge) tile with a hard vinyl wear layer and a flexible vinyl supporting
layer in a semi-glossy finish.
Performance Specifications:
Surface Resistivity PTP (NFPA99) ASTM D257
<5.5 x 107 ohms
Electrical Properties EOS-ESD 7.1 RTG
<1 x 106 ohms
Flooring Radiant Panel ASTM E648; NBSIR 75-950; NFPA 253,
0.73 W/cm2, Class 1
Critical Radiant Flux
Smoke Density, ASTM E-662; NFPA 258;
<450
Average optical density in burning/smoldering mode
Residual Indentation LF-475A:
0.002” average
Abrasive Wear, Taber H-18 wheel, 5,000 cycles, 1000 gm weight
1.1% loss of weight
Abrasive Wear, Taber H-18 wheel,
>20,000 cycles, (2.0% loss of weight)
1000gm weight to wear layer penetration (end point)
Static Coefficient of Friction, ASTM D-2047-03
60 approx.
James Test average wet, dry leather
Static load limit DIN 16961.2:
>700 psi
Charge Decay Time FTMS 4046-101c
much less than .17 seconds
Conductive Floor Tile Product 3 tile meets or exceeds the requirements of
Federal Specifications LF-475a and SST-312b for Flexibility, dimensional
stability, resistance to reagents and residual indentation.
Installation Option 1 (Electronic Adhesive Tape)
A
woven rayon textile fabric tape with conductive graphite interlocking yarn
facing, coated on both sides with pressure sensitive plasticizer resistant
acrylic adhesive.
Contains no solvent, chloride or formaldehyde.
Resistance:
<= 104
ohm
Toxics:
None
Substance:
Conductive tissue
Thickness:
0.2mm (8mil)
Silicon Paper liner:
Standard waste disposal
Durability:
Will not crack with age , retains elasticity EMPA Test Report
132810/2
Plasticizer Resistant:
High EMPA Test Report 114483
Chemical Resistant:
High to acid and alkaline
Temperature Resistant: -40
F to + 280 F
Installation
Option 2 (ESD-106 Conductive Acrylic Adhesive):
One part conductive
<106
ohms adhesive system
Base:
Modified Acrylic water based adhesive
Appearance:
Light gray
Total Solid Content:
65% approx.
Open time:
45 minutes
Weight/gal:
9.25 lb.
Shelf life:
1 year
Electronic Adhesive Tape Installation:
Can be installed over any existing floor including carpet. Requires no floor installation experience to install. The only prep work required is to level
all cracks and uneven spots on hard surface floors and clean the existing floor of dust prior to installation. Roll the Electronic Adhesive Tape on the
floor, peel off the protective plastic and start laying the tiles. The flooring
is ready for immediate use as the tiles are laid. The Electronic Adhesive
Tape is odorless, free of solvents, formaldehyde and health
risk. Installation time is 15% of that required for conventional
epoxy installations. The floor can be removed and relocated (reusable) at a
later date if desired. The Electronic Adhesive Tape acts as a conductive grid
for removal of static electricity. It has a resistivity rating under 104
ohm. The tiles have a resistivity rating under 106
ohm.
ESD Adhesive Installation:
Installation is the same as normal tile installation using adhesive with the
exception of copper ground tape placement.
Graphic instructions provided for easy installation.
|
